| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

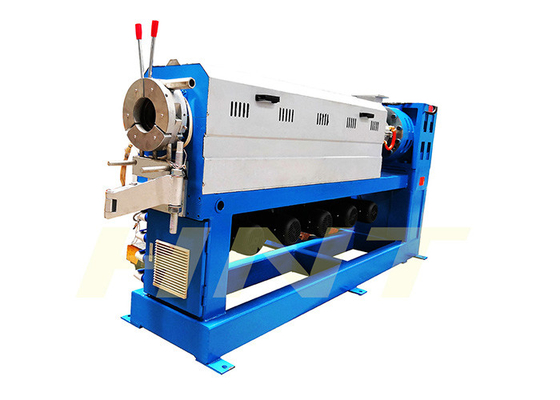

φ80mm cable extruder Machine:
Power: AC frequency conversion motor
Reduction gear box: The gear adopts grinding gear (Imitation Italian type) ZLYJ240-Ⅱ,dedicated reduction gear box for extruder.
Screw: 38CrMoAlA,φ80mm,L/D 25:1；
Barrel: 38CrMoAlA；
Screw speed:10-80rmin；
Heating: using voltage 230V, barrel 5, cast aluminum heater, heating power of 4kW each paragraph; paragraph 1 with clamp, stainless steel heater heating, heating power 12*150W;
Clamp: two piece clamp;
Cooling Method: 5 sets high-pressure centrifugal fans with screw barrel cooling, fan power 370W; natural cooling of machine clamps;
The material of screw and barrel is 38CrMoAl, hardness requirements: barrel not less than 1000HV, screw not less than 800HV, nitriding treatment, corrosion and wear resistance. The pressure limit of the barrel is not less than 1000bar.
Main parts brand:
Frequency converter: Germany Siemens.
Touch screen: Siemens touch screen
PLC : Germany Siemens.
Motor: Siemens frequency conversion AC motor.
Testing equipment: OD tester UK proton , Hetai; spark tester, UK proton.
Temperature controller: Japan RKC.
Bearing: Japan NSK.
Electric components:Germany Schneider brand
