Screw diameter 120mm
Screw structure BM screw
Screw L/C 25:1
Screw speed: 0-70r/min
Extrusion volume: PVC: 800kg, PE600KG
The material of the screw and barrel is 38CrMoAl, the hardness requirements: the barrel is not less than 900HV, the screw is not less than 760HV, nitriding treatment, corrosion resistance and wear resistance.
Motor power: AC variable frequency motor.
The screw adopts the design method of the arc-shaped screw rib structure, and the extrusion quality is much better than that of other forms of screw; the screw design adopts the heat pipe technology. It can prevent plastic from overheating and decompose while strengthening shearing; improve plasticization and homogenization of plastics; ensure high-speed extrusion and homogenization of plastics; ensure high-speed extrusion of plastics.
The barrel is heated by cast aluminum heater.
The number of temperature control sections in 6 areas of the fuselage and the number of temperature control sections in 4 areas of the crosshead. The fuselage adopts electric heating and air cooling, and the maximum heating temperature of the barrel is 300 ℃. The fuselage and the machine head are equipped with temperature measuring holes. The thermocouple adopts a spiral compression spring type, and the contact point of the temperature sensing head can be adjusted manually on the thermocouple without any tools.
The transmission gear adopts hard surface grinding, forced lubrication by pressure oil, and has the function of oil pressure protection. The gear box model is 375.

Technical Parameter:

Type	Screw Dia.	Screw L/D	Screw Speed	Extrude Capacity of PVC	Finished Out Dia.(mm)
EX-120	120MM	25:1	90 RPM	Max. 650 KG/Hr	15-40

XLPE PVC Cable Single Screw Extruder with CE Certification 0

Tags:

400m/Min Cable Extrusion Line,

1000m/Min Cable Extrusion Line,

70mm PP Extrusion Machine

Electric Wire Extrusion Line

Contact Now

Wire Insulation Line

Contact Now

Video

Rigid Conductor PVC Insulation Wire Extrusion Machine

Contact Now

Video

Silicohydride Crosslinking Insulation Extrusion Line

Contact Now

ABC Aluminum Aerial Bundled Overhead Cable Insulation Extrusion Line

Contact Now

Stranded Wire Power Cable Sheathing Machine

Contact Now

φ90mm cable extruder Machine

Contact Now

φ70mm cable extruder Machine

Contact Now

Double PVC Jacket Electrical Cable Wire Extruder BVV Stranded Copper cable extruder Machine

Contact Now

PV Cable Extrusion Machine

Contact Now

Video

Low Voltage XLPE Insulation Line

Contact Now

PRODUCTS DETAILS

Products

Wire Stranding Machine

Rigid Stranding Machine

Tubular Stranding Machine

Double Twist Stranding Machine

Cable Extrusion Line

Cable Packing Machine

Shrink Packaging Machine

Wire Take Up Machine

Wire Payoff Machine

Armoring Machine

Caterpillar Capstan

Wire Accumulator

Rewinding Lines

Cable Materials

XLPE PVC Cable Single Screw Extruder with CE Certification

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Extrusion Material:

PVC, PE, XHFFR, XLPO,PE, XLPE.

Extrusion Capacity:

800KG/H （PVC）

Screw Dia.:

φ120mm

Finished OD:

15-40mm

Screw Design:

Single-screw

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

XLPE single screw extruder machine

Single Screw PVC Extruder

Single Screw Cable PVC Extruder

Product Description

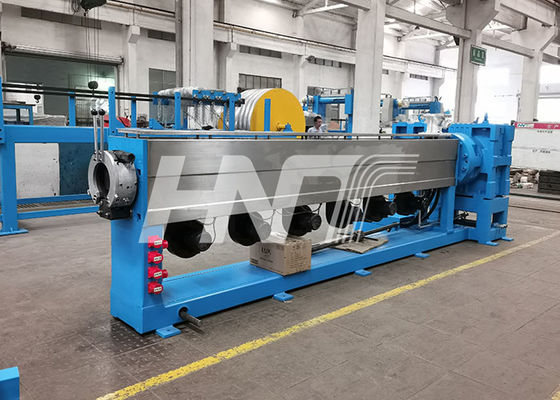

φ120mm cable extruder Machine:

Machine Description:

Screw diameter 120mm
Screw structure BM screw
Screw L/C 25:1
Screw speed: 0-70r/min
Extrusion volume: PVC: 800kg, PE600KG
The material of the screw and barrel is 38CrMoAl, the hardness requirements: the barrel is not less than 900HV, the screw is not less than 760HV, nitriding treatment, corrosion resistance and wear resistance.
Motor power: AC variable frequency motor.
The screw adopts the design method of the arc-shaped screw rib structure, and the extrusion quality is much better than that of other forms of screw; the screw design adopts the heat pipe technology. It can prevent plastic from overheating and decompose while strengthening shearing; improve plasticization and homogenization of plastics; ensure high-speed extrusion and homogenization of plastics; ensure high-speed extrusion of plastics.
The barrel is heated by cast aluminum heater.
The number of temperature control sections in 6 areas of the fuselage and the number of temperature control sections in 4 areas of the crosshead. The fuselage adopts electric heating and air cooling, and the maximum heating temperature of the barrel is 300 ℃. The fuselage and the machine head are equipped with temperature measuring holes. The thermocouple adopts a spiral compression spring type, and the contact point of the temperature sensing head can be adjusted manually on the thermocouple without any tools.
The transmission gear adopts hard surface grinding, forced lubrication by pressure oil, and has the function of oil pressure protection. The gear box model is 375.

Technical Parameter:

Type	Screw Dia.	Screw L/D	Screw Speed	Extrude Capacity of PVC	Finished Out Dia.(mm)
EX-120	120MM	25:1	90 RPM	Max. 650 KG/Hr	15-40
