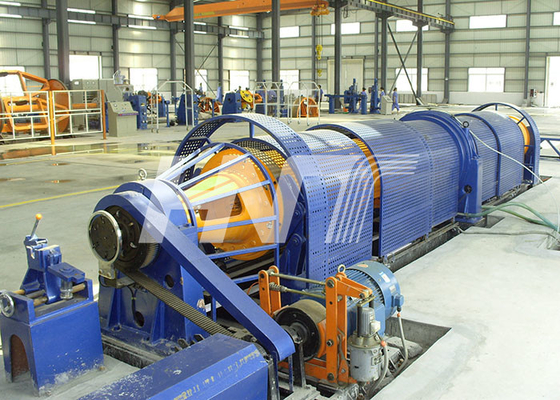

Steel Aluminium Copper Wire Tubular Strander Machine 700m/Min

MOQ:	1 set
Price:	negotiable
Standard Packaging:	according to customer's requirements
Delivery Period:	30-120 days
Payment Method:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin

Wuxi

Brand Name

HNT

Certification

ISO9001:2008, CE, High-tech enterprise

Application Cooper/Al Wire Dia.:

φ1.2-5.0mm

Application Steel Wire Dia.:

φ1.3-3.5mm

Control:

PLC+HMI

Application Bobbin:

φ500, φ630mm

Line Speed:

Max.700m/min

Wire Material:

Steel,Copper,Aluminum

Minimum Order Quantity:

1 set

Price:

negotiable

Packaging Details:

according to customer's requirements

Delivery Time:

30-120 days

Payment Terms:

T/T, L/C

Highlight

Copper wire Tubular Strander Machine

700m/min Aluminium wire Tubular Stranding Machine

Steel Aluminium wire Tubular Stranding Machine

Product Description

High Speed Tubular Stranding Machine:

Casting baseplate to ensure high stable speed running.
Stranding barrel has big bearing supported, running stably with long use life.
Improved bobbin clamping structure, more stable and reliable bobbin clamp.
Non-metallic taping head and steel taping head are available.
Equipped with wire-break detection device to ensure machine will stop automatically if any wire breaks.
PLC+HMI Electrical control system.

Technical parameters:

Model	JLG 500	JLG 630
Single wire diameter	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm Steel : Ø 1.3-3.5mm	Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm Steel : Ø 1.3-3.5mm
Max finish wire diameter	Ø 21 mm	Ø 21 mm
Max rotation speed7	700 rpm	700 rpm
Stranding pitch	40-448	40-448
Max line speed	150 m/min	150 m/min
Bobbin specification	PND500	PND630
Capstan wheel	1250 mm	1250 mm
Take-up bobbin	PN1600	PN1600
Height of center	850 mm	850 mm
