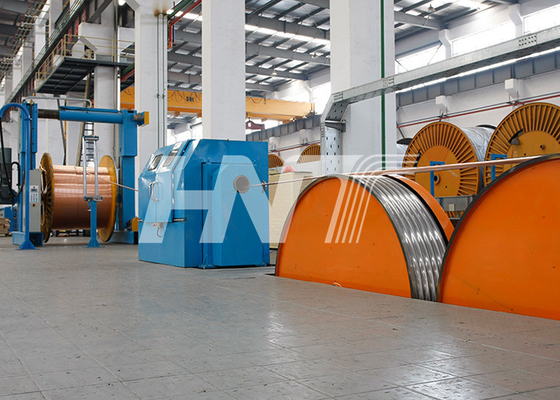

Twisting Wire φ630/710 Rigid Stranding Machine For Stranding Copper Aluminum
Twisting Wire φ630/710 Rigid Stranding Machine For Stranding Copper Aluminum
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
φ630/710 Rigid Stranding Machine: The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors. Equipped with contant tension control system ...
Product Custom Attributes
Highlight
Φ630 Rigid Stranding Machine
,Twisting Wire strander machine
,Copper Aluminum Rigid Stranding Machine
Application Wire Dia.:
Max. 5.0mm
Lay Length:
Φ30-55mm
Warranty:
12 Months
Line Speed:
Max. 100m/min
Application Bobbin:
φ630mm, φ710mm
Application:
Copper Or Aluminum Conductors Stranding
Product Description
Detailed Specifications & Features
φ630/710 Rigid Stranding Machine:
- The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors.
- Equipped with contant tension control system and intelligent brake system
- The convert control system to guarantee loading successfully in 1 time.
- PLC Electric control system.
Line Main Parts:
| Payoff | 1set |
| Wire Guider | 1set |
| Stranding cage | Each 1set |
| single wire pre-twisted | Each 1set |
| Wire Closing and Press mold base | Each 1set |
| Meter Counter | 1set |
| Double wheel capstan 2000/2500 | 1set |
| Side/bottom Lumped loading system | 3set |
| Take up | 1set |
| Electric control system | 1set |
Main Technical Date:
| Machine Model | JLK-630 | JLK-710 |
| Single Copper Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Single Alumium Wire Dia. | Φ1.8～Φ5.0mm | Φ1.8～Φ5.0mm |
| Single Alumium Alloy Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Max. stranded wire dia. | Φ30-55mm | Φ30-55mm |
| Lay length | 40～350mm(step-less adjust) | 40～350mm(step-less adjust) |
| Max rotate speed | 500rpm | 500rpm |
| Max line speed | 100m/min | 100m/min |
| Max rewinding speed | 150～200m/min | 150～200m/min |
| Pay off in Cage | 630 | 710 |
| Centre Payoff | PND630/1600 | PND630/1600 |
| Dual Wheel Capstan | 2000mm, 2500mm | 2000mm, 2500mm |
| Cage rotate motor | Siemens AC Motor | Siemens AC Motor |
| Stranding Cage Structure | 6B, 12B, 18B, 24B, 30B, 36B | 6B, 12B, 18B, 24B, 30B, 36B |
| Loading Method | Side loading or Bottom loading | Side loading or Bottom loading |
