Horizontal CCV Line Electrical Wire Accumulator With A Pneumatic Clamping Device

Horizontal CCV Line Electrical Wire Accumulator With A Pneumatic Clamping Device
Basic Properties
Place of Origin: Wuxi
Brand Name: HNT
Certification: ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Tags:

Horizontal Wire Accumulator

Continuous Wire Accumulator

220KV Wire Accumulator
Product Summary
220KV Cable Accumulator For CCV Line​: Application: MHEDB1400|2000/5 + 6/120 Crosslinked Accne inorder to continuously supply for production when change the reel of payoff to avoid stopping to change the reel, and ensure the prumulator This equipment is a horizontal movable wire accumulator. The ...
Product Custom Attributes
Highlight

horizontal Wire Accumulator

,

CCV Line Wire Accumulator

,

Electrical Wire Accumulator

Application Max. Wire Dia.:
1000mm²
Accumulator Length:
120m
Line Speed:
15M
Moving Wheels:
4
Wire Storage Material:
Wire Storage Material
Application:
Accumulator Big Section Cable
Product Description
Detailed Specifications & Features

220KV Cable Accumulator For CCV Line​:



Application:

MHEDB1400|2000/5 + 6/120 Crosslinked Accne inorder to continuously supply for production when change the reel of payoff to avoid stopping to change the reel, and ensure the prumulator This equipment is a horizontal movable wire accumulator. The wire accumulator is configured on the catenary production lioduct quality. It is one of the necessary equipment on the cross-linking production line.



Characteristic:

  1. The wire accumulator is equipped with a pneumatic clamping device, used with the wire accumulator, which is convenient for production operation.
  2. The tension of the cable between the two wheels is controlled by electricity
  3. Different cables use corresponding traction speed, which can be realized by motor speed regulation.
  4. The tension at the outlet of the accumulator is constant.

Technical Parameter:

Model MHEDB1400|2000/5 + 6/120
Accumulator wheel diameter 2000 mm
Maximum conductor diameter 1000 mm²
Accumulator Length 120 m
Number of moving wheels 4
Number of stationary wheels 5
installation length 15M
wire storage material Aluminum alloy
Maximum design line speed 25 m/min
line speed is continuously adjusted by the variable frequency drive and the AC motor 1-25m/min

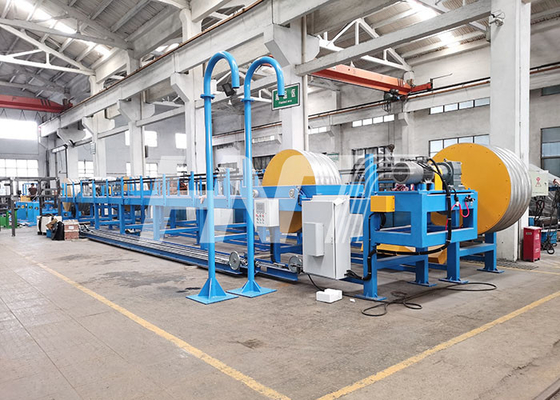

Horizontal CCV Line Electrical Wire Accumulator With A Pneumatic Clamping Device 0
