Take Up 30000kg Cable Spooler Machine 160mm Automatic Wire Spooling Machine
  • name

Take Up 30000kg Cable Spooler Machine 160mm Automatic Wire Spooling Machine

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Application Wire Dia.::
160mm
Application Drum Size:
4200mm
Loading Weight:
3T
Usage:
Winding
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
High Quality Cable Wire Pay Off Machine/take Up And Pay Up Machine
Highlight:

Floor Movable Cable Spooler Machine

,

Take Up Cable Spooler Machine

,

Take Up Automatic Wire Spooling Machine

Product Description

Floor Movable Take-up:

  1. Loading and unloading method is a portal movable structure.
  2. It is equipped with mechanical protection and electrical protection devices.
  3. Bobbin clamping is realized by the motor, and it is equipped with mechanical protection and electrical protection device.
  4. The Take-up is the AC motor drive the gearbox to drive bobbin, and the gearbox is infinitely variable.
  5. PLC control with coil diameter calculation function can automatically control the tension and reverse direction.
  6. The traverse is driven by the motor to reduce the gear box and the guide wheel, to control the pitch of the traverse.
  7. 2 method of the take-up control: torque control and speed control.

Technical parameters

Model TUB25 TUB32 TUB36 TUB42 TUB45 TU50
Reel diameter 1250/2500 1600/3200 1800/3600 2000/4200 2000/4500 2500/5000
Max flange diameter (mm) 2500 3200 3600 4200 4500 5000
Min flange diameter (mm) 1250 1600 1800 2000 2000 2500
Min overall width (mm) 900 1180 1400 1900 1900 1900
Max overall width (mm) 1900 2120 2300 2400 2400 2500
Min barrel diameter (mm) 500 800 2500 2800 2800 3000
Bore (mm) 80(100-125) 80(100-125) 200 200 200 200
Min wire diameter (mm) 7 8 20 30 30 40
Max wire diameter (mm) 70 120 140 160 160 180
Max rotation speed (RPM) 7/17/37 7/17/37 6/12/22 6/12/22 6/12/22 6/12/22
Traverse range (mm) 8-90 9-120 20-140 30-160 30-160 40-180
Max reel weight (kg) 12000 18000 25000 30000 35000 40000

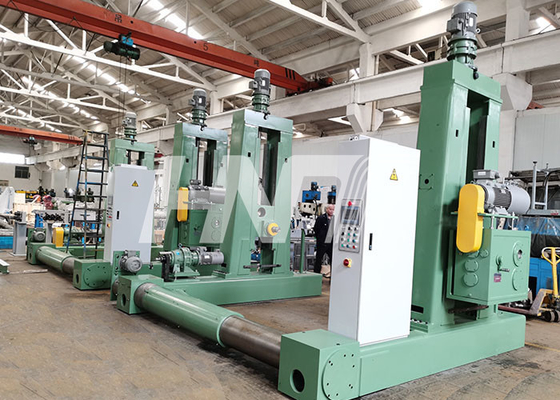

Take Up 30000kg Cable Spooler Machine 160mm Automatic Wire Spooling Machine 0

Take Up 30000kg Cable Spooler Machine 160mm Automatic Wire Spooling Machine 1

Tags:

Movable Cable Spooling Machine,

A Type Cable Spooling Machine,

wire pay off machine
