| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

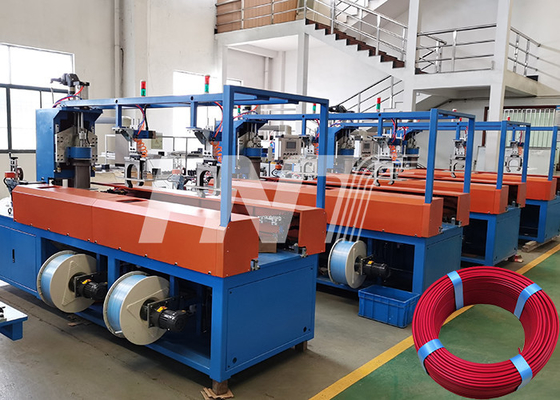

Automatic Cable Coiling And Banding Machine
Machine Main Feature:
1. Connect with the extrusion line for the non-stop cable coiling and binding operation.
2. Machine with Auto holding arm adjust system after finished coiling.
3. Machine can be connected with labeling machine.
4. Can also choose robot stacking system for full automatic running of the packing.
5. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.
6. Operation control Method:Touch screen+PLC；
7. Machine design Line speed:Max200M/min;
Technical Parameter:
| Model | Coil Height (mm) | Coil O.D (mm) | Coil I.D (mm) | Cable Dia. (mm) |
Packing Material |
Speed | Robot Auto Stacking |
| C1246 | 50-100 | 240-460 | 120-200 | 1-10 | PVC | 2-2.6Coil/M | Can be choosed |
| C1860 | 60-180 | 200-600 | 180-250 | 5-15 | PVE | 1.5-2 Coil/M | Can be choosed |
Video
Video
Video
Video
|
|
