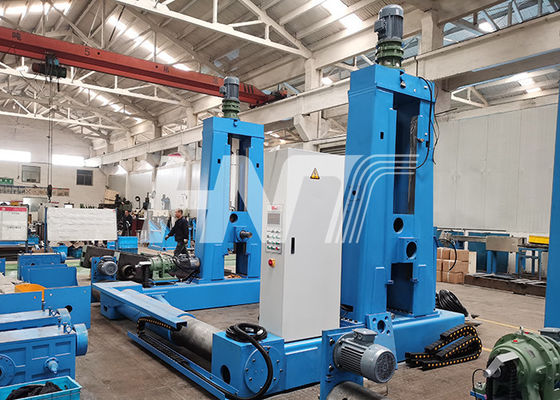

PO32 Motorized Payoff Machine For VCV Production Line

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Payoff Tension:
Pneumatic Control
Application Bobbin:
Φ1600～Φ3200mm
Application Wire Dia.:
Max.15mm
Max. Loading:
18T
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
1 Year
Highlight:

Payoff Machine For VCV production line

,

Payoff Machine For extrusion line

,

cable payoff manufacturer

Product Description

PO32 Motorized payoff:

  1. It is mainly used for the pay-off of plastic extrusion line, high-frequency welding machines and other cable equipment.
  2. Wire reel diameter range: (㎜) Φ1600～Φ3200
  3. Applicable reel width: (㎜) 1000～2300
  4. Applicable cable diameter: (㎜) Φ10～150
  5. Moving Speed: (m/min) 2
  6. Applicable cable torque: (NM) 500～4000
  7. Electric control mode: PLC+Danfoss inverter
  8. Payoff Tension: Pneumatic control
  9. Traverse motor: 1.1kw AC variable frequency motor
  10. Installed capacity: (kw) 20
  11. Maximum load: 18t



PO32 Motorized Payoff Machine For VCV Production Line 0
