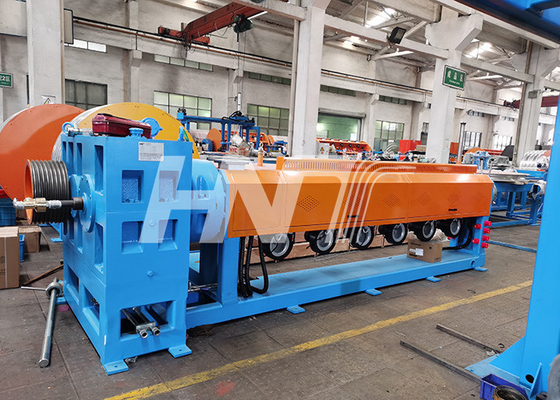

XHFFR PE XLPE PVC φ150mm Cable Extruder Machine Single Screw

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Extrusion Material:
PVC, PE, XHFFR, XLPO,PE, XLPE.
Extruder Model:
φ150mm Extruder
Screw Dia.:
φ150mm
Extrusion Capacity:
Max. 850kg/h
Screw Design:
Single-screw
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

φ150mm PVC Cable Extruder Machine

,

PVC Cable Extruder Machine Single screw

,

φ150mm XLPE Extruder

Product Description

φ150mm cable extruder Machine:

  1. Power: 200kW AC variable frequency motor;
  2. Reduction gear box: the gear adopts grinding gear, and the special gear box for the extruder;
  3. screw rod: 38CrMoAlA, 150mm, length-diameter ratio: 25:1;
  4. screw barrel: 38CrMoAlA;
  5. Screw speed: 10-70r/min;
  6. amount of glue output :850kg/h (open machine head, soft PVC);
  7. Electric heating: heating the casting aluminum heater with voltage of 220V, 6 sections of the screw barrel, and heating power is 7kW per section; Machine clamping 1 section, aluminum casting heating sheet, heating power 2*1500W;
  8. Machine clamps: two-piece machine clamps;
  9. cooling method: 6 centrifugal fans of high pressure cooling air driven by screw barrel, with a power of 750W; Machine clamp for natural cooling;

Technical Parameter:

Type Screw Dia. Screw L/D Screw Speed Extrude Capacity of PVC Finished Out Dia.(mm)
EX-150 150MM 25:1 70 RPM Max. 850 KG/Hr 15-60





XHFFR PE XLPE PVC φ150mm Cable Extruder Machine Single Screw 0
