| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

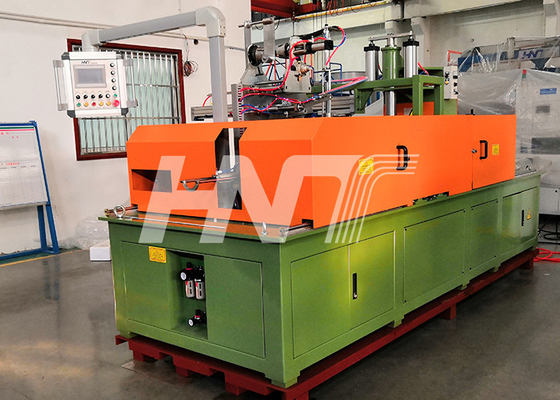

Cable Coil Wrapping Packing Machine:
Machine Main Feature:
1. Connect with the extrusion line for the non-stop cable coiling and wrapping operation.
2. With Auto labeling machine, saving labor cost,safe and convenience.
3. Can connect with robot stacking system.
4. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.
5. Operation control Method:Touch screen+PLC；
6. Machine design Line speed:Max300M/min;
7. Microcomputer memory can store 99 different specifications of wire coil. When you need to change the product
specifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately.
Film Wrapping Machine Specification:
1. PVC∕PE/PP Film Tape size:Thickness0.05mm～0.07mm × Width 40mm～50mm.
2. Film Loading Method: Pneumatic Clamping.
3. Operation panel adopts man-machine interface﹙Graphic Operator Interface﹚.
4. Whole machine electrical loop control: Adopt Mitsubishi microcomputer programmable controller (P.L.C).
5. Instruments and switches on the operation panel: touch screen, speed adjustment button, emergency switch, etc
6. It can be equipped with an automatic label feeding mechanism (optional), which can automatically absorb a label and feed it onto the coil.
7. Label requirements: airtight, the label width is less than the coil height of 10mm
Technical Parameter:
| Model | Coil Height (mm) | Coil O.D (mm) | Coil I.D (mm) | Cable Dia. (mm) |
Packing Material |
Speed | Robot Auto Stacking |
| TP460 | 60-100 | 240-460 | 170-220 | 4-12 | PVC | 2-2.6Coil/M | Can be choosed |
| TP600 | 80-180 | 320-600 | 200-300 | 5-20 | PVE | 1.5-2 Coil/M | Can be choosed |
