| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | according to customer's requirements |
| Delivery Period: | 30-120 days |
| Payment Method: | T/T, L/C |

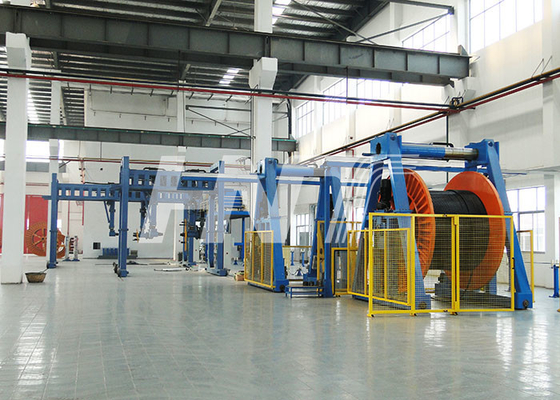

Portal A Type Take-up:
Loading and unloading method is a portal movable A type structure, the pintle of the reel are driven by two motors via a cycloidal pinwheel reducer, each of the pintle can be lifted separately or simultaneously. It is equipped with mechanical protection and electrical protection devices and with accessories pintle design to meets the installation of different specifications of the bobbin; Bobbin clamping is realized by the motor, and it is equipped with mechanical protection and electrical protection device. Loading and unloading of the bobbin is very convenient.
The Take-up is the AC motor drive the gearbox to drive bobbin, and the gearbox is infinitely variable; Siemens 200 PLC+ imported Siemens governor is used to control the motor operation. The traverse pitch and bobbin information can be input in the control panel,PLC control with coil diameter calculation function can automatically control the tension and reverse direction. The traverse is driven by the motor to reduce the gear box and the guide wheel, to control the pitch of the traverse, and the gear box is directly connected to the traverse shaft;
2 method of the take-up control: torque control and speed control which can be manually switched.
Brake: with pneumatic butterfly brake, solenoid valve control.
Technical parameters
| Model | TUA25 | TUA32 | TUA36 | TUA42 | TUA50 |
| Reel diameter | 1250/2500 | 1600/3200 | 2000/3600 | 2500/4200 | 2500/5000 |
| Max flange diameter (mm) | 2500 | 3200 | 3600 | 4200 | 5000 |
| Min flange diameter (mm) | 1250 | 1600 | 2000 | 2500 | 2500 |
| Min overall width (mm) | 900 | 1180 | 1500 | 1900 | 1900 |
| Max overall width (mm) | 1900 | 2120 | 2300 | 2400 | 2500 |
| Min barrel diameter (mm) | 500 | 800 | 2500 | 2800 | 3000 |
| Bore (mm) | 80(100-125) | 80(100-125) | 200 | 200 | 200 |
| Min wire diameter (mm) | 7 | 8 | 20 | 30 | 40 |
| Max wire diameter (mm) | 70 | 120 | 140 | 160 | 180 |
| Traverse range (mm) | 8-90 | 9-120 | 20-140 | 30-160 | 40-180 |
| Max reel weight (kg) | 12000 | 15000 | 20000 | 30000 | 40000 |
|
|
