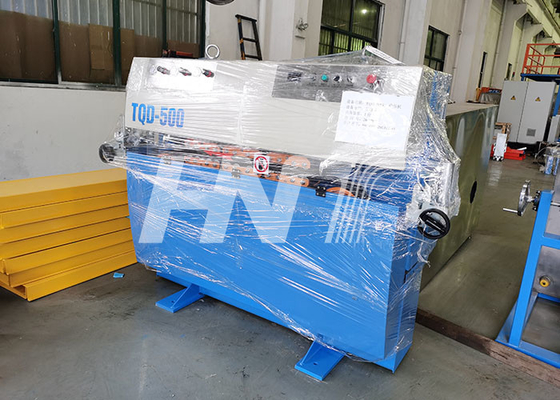

TQD 500 Belt Caterpillar Capstan For Extrusion Line
  • name

TQD 500 Belt Caterpillar Capstan For Extrusion Line

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Pulling Force:
Max.500KG
Applicable Cable Diameter:
φ30mm
Cylinder Pairs:
3
Max Line Speed:
150m/min
Belt Width:
70mm
Clamping Length:
450mm
Highlight:

TQD 500 Caterpillar Capstan

,

Belt Caterpillar Capstan

,

TQD Belt Capstan

Product Description

Caterpillar Capstan Belt Type

  1. The TQD series are designed for pulling and transferring wires and cables in the wire & cable manufacturing production lines.
  2. It is impacted by pneumatic and tension the belt automatically.
  3. The transmission is by the motor and gearbox.
  4. Synchronous controls the traction speed and the extruding speed, which level off and credibility.
  5. The controller is imported. There are level and vertical idler wheels on the edge of the output and input.
  6. The clearance can be adjusted according the wire diameter.
  7. Line speed: 150m/min
  8. Suitable wire diameter:≤70mm
  9. Max. traction:8500kg.f
  10. Contact length of belt:450mm
  11. Quantity of cylinder:43pairs

Cable guide roller

Suitable for adjustment friendly horizontally & vertically with rollers suitable up to all sizes of cores & cables.The guide roller stand shall be composed of two Nos: horizontal & vertical rollers( hard chromium plated rollers). Adjustment of each rollers set ( horizontal & vertical) shall be adjusted with one handle.

Technical Parameter:

Model Max pulling force (kg) Applicable cable diameter (mm) Gripping length (mm) Belt width (mm) Max line speed (m/min)
TQD-5005 00 ≤φ30 450 70 150





TQD 500 Belt Caterpillar Capstan For Extrusion Line 0
