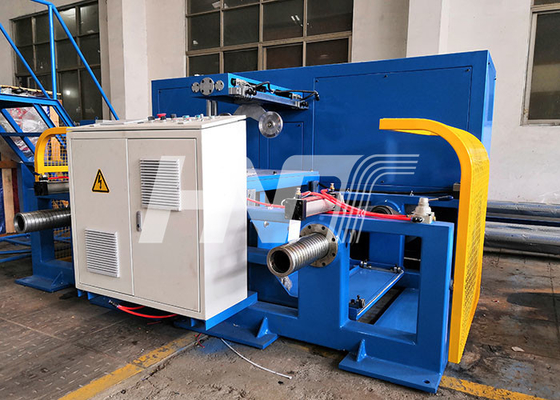

800 Double Reel Automatic Cable Winder Industrial Cable Winder
  • name

800 Double Reel Automatic Cable Winder Industrial Cable Winder

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Power:
11kw
Suitable Wire Dia:
Max.15mm
Application Line Speed:
350m/min
Traverse:
Motor Control
Takeup:
Motorized
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

Double Reel automatic cable winder

,

Motorized Cable Winder

,

Motorized industrial cable winder

Product Description

800 Double Reel Take-up

  1. Type: Shaftless;
  2. Power:11KW Variable frequency AC motor；
  3. Suitable Wire Dia.:MAX:￠15mm;
  4. Linear speed: Design linear speed 350M/min；
  5. Suitable bobbin:￠500mm-800mm, loading weight Max. 1500kg.
  6. Traverse: Servo motor + ball screw cable arrangement;
  7. Bobbin loading and unloading:By manual. Electric lifting, pneumatic clamping, power for motor electric lifting;
  8. Control instructions: This machine is operated by an independent electric box, with an emergency stop, linkage interface, and meter output interface added;
  9. An industrial refrigeration air conditioner is installed in the control electric box.

- Double reel Take-up Specification:

Model Inner diameter (mm) Outer diameter (mm) Max load (kg)
PF-1000M 630 - 1000 300 - 750 1500
PF-1250M 800 - 1250 450 - 950 2500
PF-1600M 1000 - 1600 600 - 1200 4000





800 Double Reel Automatic Cable Winder Industrial Cable Winder 0

800 Double Reel Automatic Cable Winder Industrial Cable Winder 1
