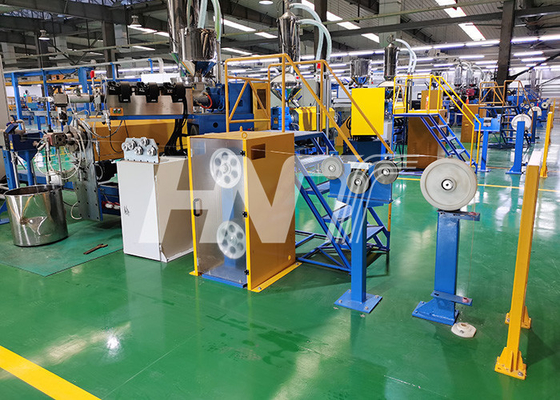

PVC Wire Making Machine Insulation Cable Extrusion Line Japan RKC Temperature Control

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Application:
Wire Extrusion And THHN Wire Insulation And Sheathing;
Temperature Control:
Japan RKC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Plastic Processed:
PVC,PE,PP,HDPE
Warranty:
1 Year
Motor:
SIEMENS BRAND
Highlight:

Japan RKC wire insulation machine

,

Wire Insulation Cable Extrusion Line

,

RKC PVC Wire Making Machine

Product Description

Building Wire Insulation Line:

  1. Specific screws and barrels can be applied for PVC, PE, LSNH, Teflon, Nylon and etc.
  2. The extrusion crosshead can be selected from center-adjusted or adjustless with function of strip color and skin color .
  3. Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).​
  4. THHN wire insulation and sheathing;

Technical parameter:

Model Screw parameter Max Extrude capacity (kg/hr) Finished Outer Diameter (mm)
Diameter (mm) L/D Speed (RPM) PVC LDPE LSNH
EX-40G 40 26:1 120 24 14   0.8-3
EX-50G 50 26:1 120 60 35   1-6
EX-60G 60 26:1 120 100 60 22 2-8
EX-70G 70 26:1 120 160 130 36 3-15
EX-80G 80 26:1 110 220 180 48 5-20
EX-90G 90 26:1 100 310 240 65 8-25
EX-100G 100 25:1 90 400   90 10-30
EX-120G 120 25:1 90 550     15-40
EX-150G 150 25:1 60 900 550
EX-200G 200 25:1 60 1300 1100 750





PVC Wire Making Machine Insulation Cable Extrusion Line Japan RKC Temperature Control 0

PVC Wire Making Machine Insulation Cable Extrusion Line Japan RKC Temperature Control 1

PVC Wire Making Machine Insulation Cable Extrusion Line Japan RKC Temperature Control 2
