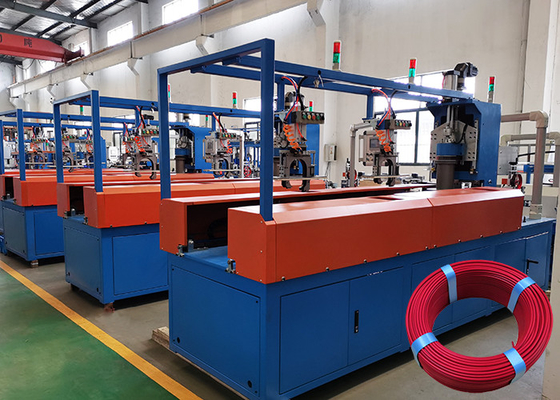

C1246 Cable Coiling And Wrapping Machine PVC Coil Wrapping Machine
  • name

C1246 Cable Coiling And Wrapping Machine PVC Coil Wrapping Machine

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Max. OD Of Coil:
φ460mm
Height Of Coil:
100mm
Inner Dia.:
Max. 200mm
Width Of Tape:
15mm
Line Speed:
Max. 200m/min
Control Method:
Touch Screen + PLC
Highlight:

C1246 cable coiling and wrapping machine

,

200m/min cable coiling and wrapping machine

,

PVC coil wrapping machine

Product Description

C1246 Automatic Coiling And Strapping Machine



Machine Main Feature:

  1. Connect with the extrusion line for the non-stop cable coiling and binding operation.
  2. Machine with Auto holding arm adjust system after finished coiling.
  3. Machine can be connected with labeling machine.
  4. Can also choose robot stacking system for full automatic running of the packing.
  5. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.
  6. Microcomputer memory can store 99 different specifications of wire coil. When you need to change the productspecifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately.
  7. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling.
  8. Instrument and switch on the operation panel: touch screen, speed adjustment button.
  9. Speed can be adjusted on the touch screen or the speed adjustment button.
  10. The machine PLC has the power frequency sparker contact(the power frequency spark machine is provided by the customer)

Technical Parameter:

Model Coil Height (mm) Coil O.D (mm) Coil I.D (mm) Cable Dia. (mm)

Packing

Material

 Speed Robot Auto Stacking
C1246  50-100 240-460 120-200 1-10 PVC 2-2.6Coil/M Can be choosed
C1860 60-180 200-600 180-250 5-15 PVE 1.5-2 Coil/M Can be choosed



C1246 Cable Coiling And Wrapping Machine PVC Coil Wrapping Machine 0C1246 Cable Coiling And Wrapping Machine PVC Coil Wrapping Machine 1
