C1860 Automatic Banding Machine Automatic Cable Coiler

C1860 Automatic Banding Machine Automatic Cable Coiler
Basic Properties
Place of Origin: Wuxi
Brand Name: HNT
Certification: ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity: 1 set
Price: negotiable
Payment Terms: T/T, L/C
Tags:

Cable Packing Machine

PVE wire coil wrapping machine

180mm Cable Packing Machine
Product Summary
Cable Coil Wrapping Machine : Machine Main Feature: Connect with the extrusion line for the non-stop cable coiling and binding operation. Machine with Auto holding arm adjust system after finished coiling. Machine can be connected with labeling machine. Can also choose robot stacking system for full ...
Product Custom Attributes
Highlight

C1246 automatic cable coiler

,

c1860 automatic banding machine

,

c1860 automatic cable coiler

Usage:
Automatic Coiling & Strapping
Strapping Material:
PP
Strapping Method:
2 Tape Strapping
Width Of Tape:
15mm
Control Method:
Touch Screen + PLC
Tickness Of Tape:
0.4-0.6mm
Product Description
Detailed Specifications & Features

Cable Coil Wrapping Machine :



Machine Main Feature:

  1. Connect with the extrusion line for the non-stop cable coiling and binding operation.
  2. Machine with Auto holding arm adjust system after finished coiling.
  3. Machine can be connected with labeling machine.
  4. Can also choose robot stacking system for full automatic running of the packing.
  5. System with automatic detection function, when problem come out, the machine can auto detect the mistakes, and send message to warn the operator.
  6. Microcomputer memory can store 99 different specifications of wire coil. When you need to change the product specifications, you just need to read the data of the stored specifications. No need to input again, and you can produce immediately.
  7. Traverse device: by adopts Mitsubishi servo motor and synchronizes with the main machine of coiling.

Technical Parameter:

Model Coil Height (mm) Coil O.D (mm) Coil I.D (mm) Cable Dia. (mm)

Packing

Material

 Speed Robot Auto Stacking
C1246  50-100 240-460 120-200 1-10 PVC 2-2.6Coil/M Can be choosed
C1860 60-180 200-600 180-250 5-15 PVE 1.5-2 Coil/M Can be choosed

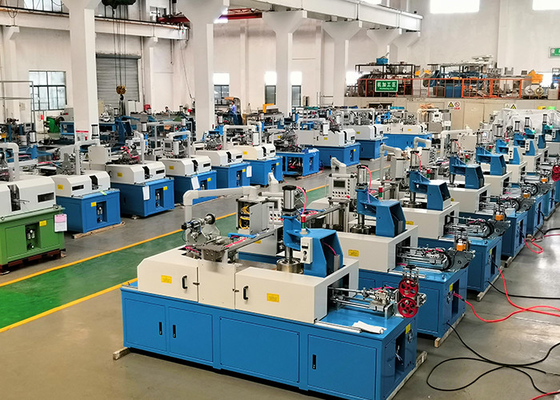

C1860 Automatic Banding Machine Automatic Cable Coiler 0

C1860 Automatic Banding Machine Automatic Cable Coiler 1
