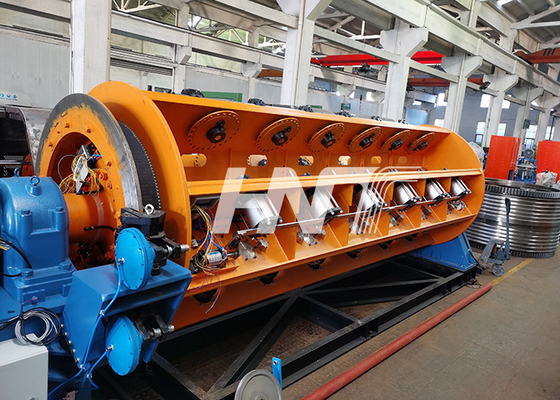

Single Copper Or Single Aluminum Wires Rigid Stranding Machines

Rigid stranding machines for single copper or single aluminum wires Rigid Stranding lines for 500 mm to 800 mm cages

1. Stranding lines are designed for single copper or single aluminium wires, making compacting or non-compacting, round or sector and straight or pre-spiral conductor.
2. Stranding up to 127 wires (copper, copper alloy, aluminum, aluminum alloy).
3. Round compacted Extra High Voltage and High Voltage Cables (HVDC, HVAC).
4. Prespiralled sector cores for Milliken.
5. Overhead conductors (AAC, ACSR, AAAC, ACCC, ACSS…).
6. Steel wire armouring.
7. Copper wire screening.
8. Flexible Class 5.
9. Control Cable.

10. Rigid Stranding lines according to customer’s request from 500 mm to 800 mm cages.

The convert control system to guarantee loading successfully at one time:

The trolley is controlled by the converter, the operation is slow-faset-slow, which means the trolley starts slowly, moves qualicy, and approaches the cage slowly. It can make the trolley running stable, reliable, and precise. Mechanical and electrical positioning.

Electrical Control System:

The synchronal control system for separate motorized strander is different from other similar strander system by other makers. It's easy to operate by setting up all parameters on the touch screen. All process parameters can be recollected. A unique pro and data collection system ensure the machine running is stable and reliable. The precision of lay length is less than 3% when emergency stop and less than 1% when normal stop of the line (Profibus communication control).

Technical Parameter:
