Cushion Water Blocking Tape Semi Conductive High Expansion Performance
Cushion Water Blocking Tape Semi Conductive High Expansion Performance
Basic Properties
Place of Origin:
China
Brand Name:
HNT
Trading Properties
Payment Terms:
L/C, T/T, Western Union
Product Summary
Semi-conductive Cushion Water Blocking Tape Application: Be used for cushion and water blocking inside metal jacket of super-high power cable. It is mainly used in the embossing process of high-voltage cable aluminum sheath. Properties HTHZD15 HTHZD20 HTHZD30 Thickness (mm) 1.5±0.03 2.0±0.03 3.0±0...
Product Custom Attributes
Highlight
Cushion Water Blocking Semi Conductive Tape
,Cushion Water Blocking Tape
,high expansion Cushion Water Blocking Tape
Color:
Black
Package:
Roll
Material:
Semi-conductor
Application:
High Voltage
Product Description
Detailed Specifications & Features

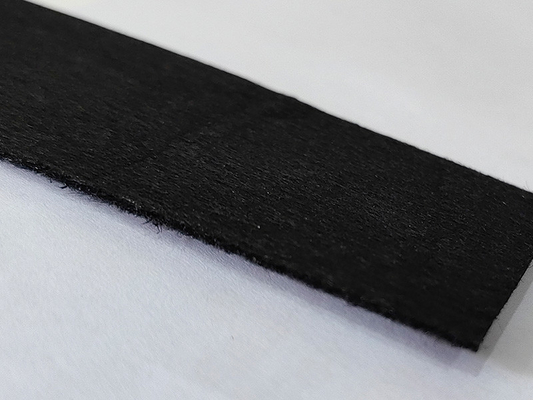

Semi-conductive Cushion Water Blocking Tape
Application: Be used for cushion and water blocking inside metal jacket of super-high power cable.
It is mainly used in the embossing process of high-voltage cable aluminum sheath.
| Properties | HTHZD15 | HTHZD20 | HTHZD30 |
| Thickness (mm) | 1.5±0.03 | 2.0±0.03 | 3.0±0.03 |
| Weight (g/m2) | 260±40 | 280±40 | 320±40 |
| Tensile Strength (N/cm) | ≥40 | ≥40 | ≥40 |
| Elongation(%) | ≥12 | ≥12 | ≥12 |
| Surface Resistance (Ω) | ≤500 | ≤500 | ≤500 |
| Volume Resistance (Ω.cm) | ≤2X104 | ≤2X104 | ≤2X104 |
| Swelling Speed (mm/min) | ≥8 | ≥8 | ≥10 |
| Swelling Height (mm/min) | ≥10 | ≥12 | ≥14 |
| Short Term Stability (℃) | 230 | 230 | 230 |
| Long Term Stability (℃) | 90 | 90 | 90 |
| Moisture Content (%) | ≤7 | ≤7 | ≤7 |
Note:
- Low resistance and high expansion performance can be produced according to customer requirements
Features:
- Has excellent water swelling speed and swelling height;
- Best time to use: within 6 months
- Storage site requirements: cool, dry and ventilated.
