Horizontal Movable Wire Accumulator with Adjustable Tension
Horizontal Movable Wire Accumulator with Adjustable Tension
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
Cross-linked wire accumulator: Application: MHEDB1400|2000/5 + 6/120 Crosslinked Accne inorder to continuously supply for production when change the reel of payoff to avoid stopping to change the reel, and ensure the prumulator This equipment is a horizontal movable wire accumulator. The wire ...
Product Custom Attributes
Highlight
Movable Wire Accumulator
,2000mm Wire Accumulator
,Cross Linked Wire Roll Dispenser
Wheel Diameter:
2000mm
Accumulator Length:
120m
Line Speed:
15M
Moving Wheels:
4
Wire Storage Material:
Wire Storage Material
Product Description
Detailed Specifications & Features

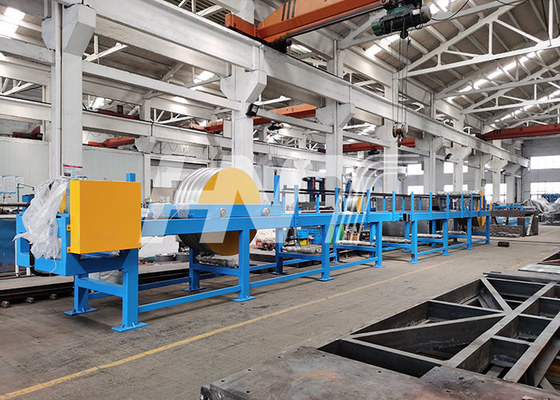

Cross-linked wire accumulator:
Application:
MHEDB1400|2000/5 + 6/120 Crosslinked Accne inorder to continuously supply for production when change the reel of payoff to avoid stopping to change the reel, and ensure the prumulator This equipment is a horizontal movable wire accumulator. The wire accumulator is configured on the catenary production lioduct quality. It is one of the necessary equipment on the cross-linking production line.
Technical Parameter:
| Model | MHEDB1400|2000/5 + 6/120 |
| Accumulator wheel diameter | 2000 mm |
| Maximum conductor diameter | 1000 mm² |
| Accumulator Length | 120 m |
| Number of moving wheels | 4 |
| Number of stationary wheels | 5 |
| installation length | 15M |
| wire storage material | Aluminum alloy |
| Maximum design line speed | 25 m/min |
| line speed is continuously adjusted by the variable frequency drive and the AC motor | 1-25m/min |
