Rigid Conductor PVC Insulation Wire Extrusion Machine

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Motor Power For Extrusion:
45KW
Extruder Model:
φ70mm Extrusion
Extrusion Capacity:
180KG
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Plastic Processed:
PVC,PE,PP,HDPE
Warranty:
1 Year
Highlight:

Rigid Conductor Wire Extrusion Machine

,

PVC Insulation Wire Extrusion Machine

Product Description

Φ70mm Wire Extruding Machine

  1. Application for the building wire & electric wire extrusion;
  2. Line speed can be choose according to the takeup, Max 1000m/min;
  3. Takeup can be Automatic Dual reel take, manual takeup and coiling packing machine, configuration can be choose according to customer's requirements;
  4. Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
  5. The extrusion crosshead of EX series can be selected from center-adjusted or adjustless, strip color and skin color can be adopt.
  6. Crosshead clampers of EX series are double-tooth rod chain driven, and other fixed parts has the function of auto-centering.
  7. Operation plate of main control box is mounted with human-computer interface and also traditional button switch to ensure operational simplicity.
  8. Electric circuit control is from Siemens programmable controller(PLC).
  9. Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).
  10. Hopper dryer& Auto-suction device is from TAIWAN Brand.

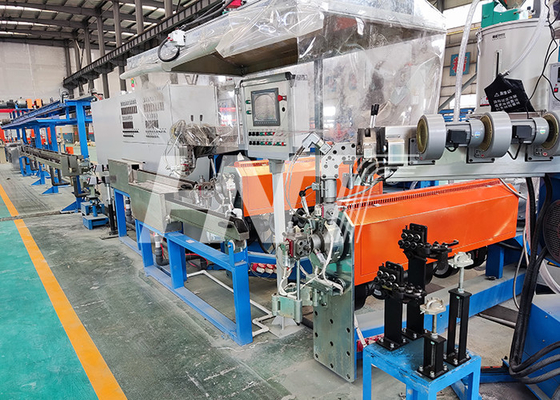

Rigid Conductor PVC Insulation Wire Extrusion Machine 0Rigid Conductor PVC Insulation Wire Extrusion Machine 1

Rigid Conductor PVC Insulation Wire Extrusion Machine 2
