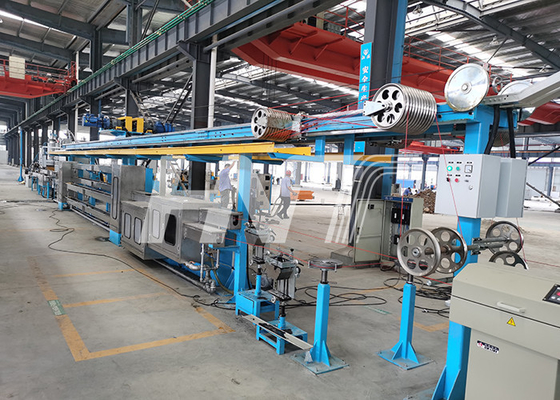

THHN Electrical Cable Extrusion Machine
THHN Electrical Cable Extrusion Machine
Basic Properties
Place of Origin:
Wuxi
Brand Name:
HNT
Certification:
ISO9001:2008, CE, High-tech enterprise
Trading Properties
Minimum Order Quantity:
1 set
Price:
negotiable
Payment Terms:
T/T, L/C
Product Summary
PVC Cable Extruder Line: φ70+50mm 2 in 1 Extrusion Line, save space and labor cost; After Insulation can takeup to bobbin, as well as takeup to automatic coiling and packing machine will small cable coil; After insulation the packing line can connect with cable coil wrapping machine or cable coil ...
Product Custom Attributes
Highlight
THHN wire insulation machine
,THHN Cable Extrusion Machine
,cable extrusion machine manufacturers
Application Material:
PVC, PE, XLPE, LSHF
Extruder Mode:
70 Extruder
Crosshead Function:
Singler Layer, Strip Extrusion
Water Trough:
Warm Water And Cooling Water
Function:
Insualtion
Certification:
CE
Product Description
Detailed Specifications & Features
PVC Cable Extruder Line:
- φ70+50mm 2 in 1 Extrusion Line, save space and labor cost;
- After Insulation can takeup to bobbin, as well as takeup to automatic coiling and packing machine will small cable coil;
- After insulation the packing line can connect with cable coil wrapping machine or cable coil film heat shrink packing line;
- Packing line can be choose with robot stacking or by manual;
- Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LSNH, Teflon, Nylon and etc.
-
Insulation line can be equipment with a co-extruder for color skinning and stripping purposes
-
Can competed with THHN insulation lines by including a tandem extruder for PA(Nylon) outer Jacketing.
- Electric circuit control is from Siemens programmable controller(PLC).
- Tem-control is from Japanese RKC series tem-controller &solidity repay(SSR).
- Line also can connet with Auto Dual Reel Takeup, this can speed up the line speed achieve Max. 1000m/min
Extrusion Type:
Technical parameter:
| Model | Screw parameter | Max Extrude capacity (kg/hr) | Finished Outer Diameter (mm) | ||||
| Diameter (mm) | L/D | Speed (RPM) | PVC | LDPE | LSNH | ||
| EX-40G | 40 | 26:1 | 120 | 24 | 14 | 0.8-3 | |
| EX-50G | 50 | 26:1 | 120 | 60 | 35 | 1-6 | |
| EX-60G | 60 | 26:1 | 120 | 100 | 60 | 22 | 2-8 |
| EX-70G | 70 | 26:1 | 120 | 160 | 130 | 36 | 3-15 |
| EX-80G | 80 | 26:1 | 110 | 220 | 180 | 48 | 5-20 |
| EX-90G | 90 | 26:1 | 100 | 310 | 240 | 65 | 8-25 |
| EX-100G | 100 | 25:1 | 90 | 400 | 90 | 10-30 | |
| EX-120G | 120 | 25:1 | 90 | 550 | 15-40 | ||
| EX-150G | 150 | 25:1 | 60 | 900 | 550 | ||
| EX-200G | 200 | 25:1 | 60 | 1300 | 1100 | 750 | |
