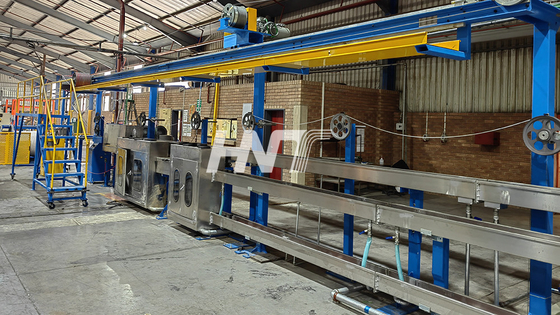

Cable Extrusion Line Machine Tandem Extrusion Photovoltaic Solar PV

Photovoltaic Solar PV Cable Extrusion Line Solar Cable Extruder Machine

Application: This equipment is mainly used for single-color and double-layer high speed extrusion of PV/Solar cable extrusion line for the materials XHFFR, XLPO,PE, XLPE. The wire ranges from 1.5mm² to 16mm².

Electric Control System:

1. The whole production line adopts Siemens S7-1500+TP1200 Siemens touch screen control, which can reflect the production line status in real time;

2. The operation screen adopts a separate cantilever screen;

3. From the power distribution cabinet to the take-up is equipped with a complete machine cable bridge, the bridge adopts overhead installation, with wire storage column;

3. Control: automatic and manual control, main engine, traction can be synchronous linkage, single action; The traction can be single action and linkage;

4. Heating: Machine heating solid-state relay, crosshead heating contactor, temperature adopts PLC module (strong electrical isolation measures need to be considered);

5. Display: parameters such as the speed, current, voltage, traction speed, current, voltage, wire diameter and wire diameter curve of the extruder;

6. Alarm: drive failure alarm, temperature out of control alarm, fan alarm, main motor overload alarm, spark alarm, lack of material alarm, all alarm information needs to be displayed on the touch screen.

Line Takeup Method:

1. Takeup to Bobbin

2. Takeup to Coiling and Wrapping machine
