Rigid Stranding Lines For Single Copper Or Single Aluminum Wires

MOQ:	1
Delivery Period:	120days
Payment Method:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HNT

Certification

Model Number

630

Usage:

Stranding,Power Cable And Conductor Stranding,Rigid Frame Cable Wire Stranding Machine

Color:

Customized

Name:

Rigid Frame Wire Cable Stranding Machine,Cable Making Machine,High Quality Rigid Frame Stranding Machines .

Application:

Making Cable,stranding Wire And Cable,Copper Or Aluminum Conductors Stranding

Wire Material:

Copper,aluminum,steel,etc.

Voltage:

As Customers' Request

Plc:

SIEMENS,optional

Warranty:

12 Months

Function:

Stranding,stranding Wire And Cable

Cage Rotate Speed:

40-156r/min.

Product Name:

Rigid Frame Stranding Machine

Take-up Reel:

PND1600-PND3150

Type:

Side Bottom Autol Loading,Automatic Machine

E-twist Pitch:

500-2400mm

Range Of Pitch:

40-120mm

Highlight:

Single Copper Rigid Stranding Lines

Single Wires Rigid Stranding Lines

Single Aluminum Wires Rigid Stranding Lines

Product Description

Rigid Stranding Lines

General Description and Technical Requirements:

This machine (with lumped loading device) is suitable for producing large length, compact, bare Al/Cu wire, and ACSR, aluminum alloy wire and sector conductor. The machine is driven by separate motor for each cage and dual capstan; the stranding pitch can be adjusted by Touch screen.

Main technical parameter:

Category	Equipment	Quantity
Payoffs	PND1600 pay-off device (column - type)	1 set
Payoffs	PND630 pay-off device (end cone - type)	1 set
Stranding Cage Model	6 Bobbin Cage	1 set
	12 Bobbin Cage	1 set
	18 Bobbin Cage	1 set
	24 Bobbin Cage	1 set
	30 Bobbin Cage	1 set
Loading & Unloading System	Automatic side(or side - bottom) loading & unloading system	5 sets ( 1 set for each cage)
Auxiliary Equipment	Close die & compact head	5 sets ( 1 die and 2 compact heads for each cage)
Auxiliary Equipment	Meter counter	1 set
Capstan	Dual capstan Φ2500	1 set
Take - ups	PN 1600 - 3150 portal-type take - up device with traversing	1 set
Safety System	Safety cover	1 set
Controlling System	HNT synchronous electrical control system	1 set

Single Wire Diameter	Maximum Conductor Section	Line Speed	Maximum Rotating Speed (Empty / Full)
Cu ø 1.5 - ø 4.5 mm Al ø 1.8 - ø 5.0 mm	Round compact Cu 800 mm2 Round compact Al 1200 mm2 Sector Cu 630 mm2 Pre - spiraled Cu 800 mm2 Sector Al 800 mm2	6 - 60 m/min	6 Bobbins 220/210 rpm 12 Bobbins 220/190 rpm 18 Bobbins 205/180 rpm 24 Bobbins 205/150 rpm 30 Bobbins 205/120 rpm

Stranding Pitch	Pre - spiral Rotating Lay Length	Line Center Height	Pay - off Bobbin in Cage
34 - 1024 mm	800 - 2000 mm	1100 mm	PND630 (Buyer provides the bobbin drawing

Electric Control:

The production line is controlled by PLC and touch screen, driven by ac motor and drive unit adopts 690 governor. All technical parameters can be set on the touch screen, and production process parameters can be set and stored. Display production working parameters, machine working state and machine fault point, each section cage can be set separately related parameters, and can be set according to the actual situation to modify the parameters; The whole machine is controlled by Siemens PLC and touch mode screen. Different working states are set in the program, which can keep the wire pitch substantially the same in different operating conditions.

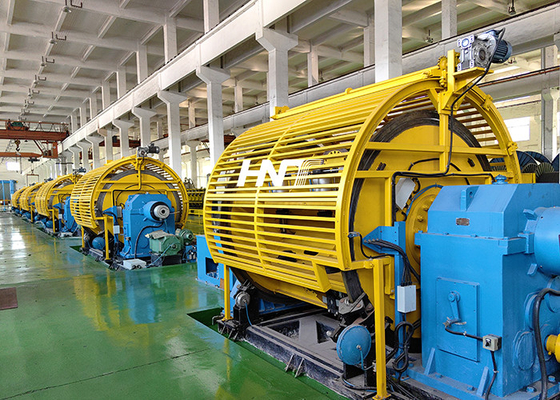

Rigid Stranding Lines For Single Copper Or Single Aluminum Wires 0
