semi longitudinal Armoring Machine helical taping Armoring Machine
  • name

semi longitudinal Armoring Machine helical taping Armoring Machine

MOQ: 1 set
Price: negotiable
Standard Packaging: according to customer's requirements
Delivery Period: 30-120 days
Payment Method: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin
Wuxi
Brand Name
HNT
Certification
ISO9001:2008, CE, High-tech enterprise
Application:
NON-Metal
Max. OD Of Taping Wire:
200mm
Head Max. Speed:
700r/min
Tape Pitch:
9-160mm
Motor:
11KW
OD Of Tape Reel:
φ600mm
Highlight:

helical taping Armoring Machine

,

semi longitudinal Armoring Machine

,

non metallic Cable Taping Machine

Product Description

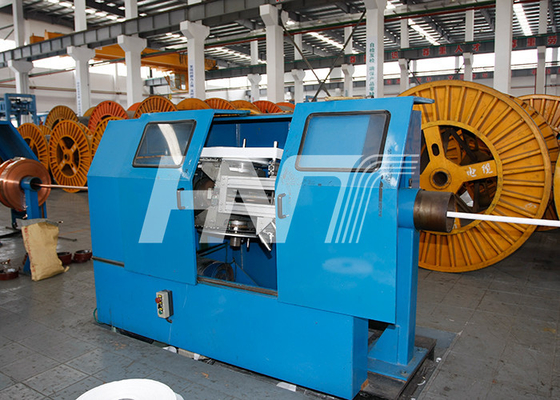

Non Metal Taping Machine

  1. The equipment is a non-metal wrapping device, wrapping type is half-cut.
  2. Taping device: Tangential type
  3. No. Of Taping head: 2
  4. Max. OD of taping wire: Φ200㎜
  5. No. Of tape reel 2 reel
  6. OD of tape reel Φ600㎜
  7. Head Max. Speed 700r/min
  8. Tape Overlap rate 0-50%.
  9. Tape pitch: 9-160mm
  10. Tape material Φ630*Φ80*(30—80) Water blocking tape, copper ribbon, copper tape, buffer tape, etc.(Metal belt weight 25kg/reel Max,Non-metallic belt weight 15kg/reel Max).
  11. Adjusted by mechanical friction, adjustable tension.
  12. Motor Power:11kw

semi longitudinal Armoring Machine helical taping Armoring Machine 0
